metal marking machine

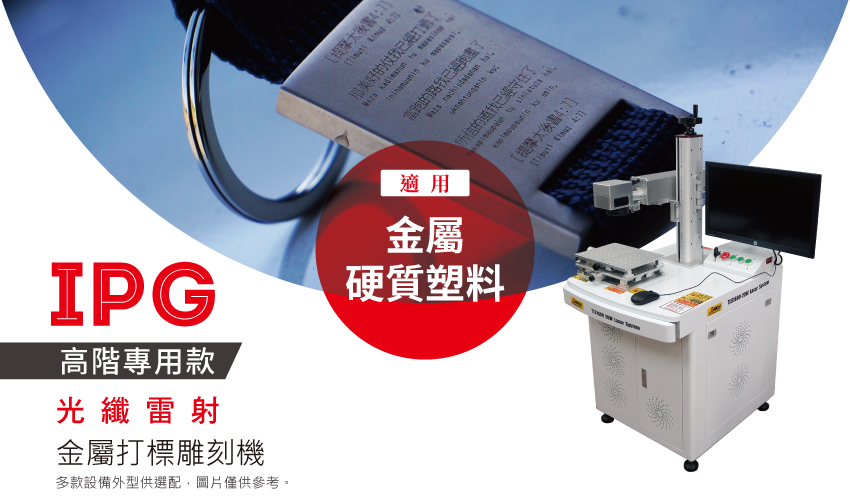

[High-end special models] IPG series fiber laser metal marking and engraving machine
Using German IPG laser is more stable and accurate!

■ This series is recommended for industries that have certain requirements for machining accuracy.
■Suitable for metal and hard plastics.
■Laser wattage: 20W / 30W / 50W
■German IPG laser, with small spot, giving you finer, higher-speed, and higher-quality products.
■The processing speed is fast, 3-30 times that of the traditional marking machine.
■Attached with genuine Taiwanese independent research and development engraving software, supporting nine languages.
■Sheet metal frame cabinet, non-aluminum extruded assembly.

■ Consultation hotline: +886 965-236-169 Mr. Hung mail: service@3axle.com
■ Welcome to contact for proofing / on-site to see the machine to test
■ One year warranty service
■ Taiwanese technicians/Taiwan service
Phone Email



High-end dedicated models Stable, high speed, accurate

German IPG laser guarantees high precision, high speed and high quality.

It is suitable for industries that have certain requirements for machining accuracy.







Deep, shallow carving, product number, barcode, serial number or automatic number skipping of metal and hard plastic





Taiwan Design Laser marking software

It comes standard with professional engraving software independently developed by Taiwan and supports nine languages.

(English, Simplified Chinese, Traditional Chinese, German, Japanese, Polish, Portuguese, Turkish, Vietnamese)



Laser power 20W 30W 50W
Maximum pulse energy 1.0mj 2.0mj 1.0mj
Frequency adjustable range 20-200Khz 30-200Khz 50-200Khz
Pulse Width 100ns 100ns 120ns
Cooling method Air cool
Electricity single-phase AC220V / 50-60H ※Need ground wire
Power consumption of the whole machine ≦ 2KW
Center wavelength 1064nm
Power adjustment range 1-100%
Control card software TAIWAN
Vibrating lens High-speed vibrating lens / Scan Lab
Equipment size Narrow version：760*610*750mm Wide version：840*650*750mm  ※White cabinet part
Standard equipment Marking machine, goggles, simple fixture, external red light, foot switch


The above specifications are subject to change without notice. Please refer to the specifications on the latest quotation.
